Sphygmomanometer: History, Types, Parts & How to Use

Have you ever wondered about the device your doctor uses to measure your blood pressure? That instrument is called a sphygmomanometer, and it has a fascinating history and intricate design.

In this article, you’ll discover the origins of sphygmomanometers, explore its various types, and learn about its component parts. You’ll also gain insight into how healthcare professionals use sphygmomanometers to obtain accurate blood pressure readings. Whether you’re a medical student, healthcare worker, or simply curious about medical devices, understanding the sphygmomanometer will deepen your appreciation for this essential instrument in modern medicine.

What is a Sphygmomanometer?

A sphygmomanometer is a medical device used to measure blood pressure. This essential tool, also known as a blood pressure meter or blood pressure gauge, plays a crucial role in monitoring cardiovascular health and diagnosing hypertension.

The term “sphygmomanometer” comes from the Greek words “sphygmos” (pulse) and “manometer” (pressure meter). It typically consists of an inflatable cuff, a measuring unit, and a mechanism to inflate the cuff, such as a manually operated bulb or an automatic pump.

The primary function of a sphygmomanometer is to measure both systolic and diastolic blood pressure.

Uses in Medical Practice

Sphygmomanometers are widely used in various healthcare settings:

1. Regular check-ups: To monitor overall cardiovascular health
2. Hypertension management: For diagnosing and tracking high blood pressure
3. Emergency situations: To assess a patient’s vital signs quickly
4. Home monitoring: Allowing patients to track their blood pressure between doctor visits

By providing accurate blood pressure measurements, sphygmomanometers help healthcare professionals make informed decisions about patient care and treatment plans. They are indispensable tools in the early detection and management of cardiovascular diseases, making them a cornerstone of preventive medicine and long-term health monitoring.

The Origin and History of the Sphygmomanometer

The sphygmomanometer is a crucial instrument in modern medicine, has a rich history dating back to the 18th century. Its development was driven by the growing understanding of blood pressure and its significance in human health. The journey began with the work of Reverend Stephen Hales, who first measured blood pressure in animals in 1733.

The early 19th century saw significant advancements in sphygmomanometer design. In 1881, Samuel Siegfried Karl Ritter von Basch invented the first sphygmomanometer that didn’t require surgery. This non-invasive approach revolutionized blood pressure measurement, making it more accessible and practical for widespread use.

A major milestone came in 1896 when Italian physician Scipione Riva-Rocci developed the mercury sphygmomanometer. This device, featuring an inflatable cuff around the arm, became the prototype for modern blood pressure monitors. Riva-Rocci’s design allowed for more accurate and consistent measurements, setting a new standard in medical diagnostics.

In 1905, Russian physician Nikolai Korotkoff made another crucial discovery. He identified the sounds now known as “Korotkoff sounds,” which occur as blood flows through an artery. This finding enabled the measurement of both systolic and diastolic blood pressure, greatly enhancing the sphygmomanometer’s diagnostic capabilities.

The 20th century saw further refinements to the sphygmomanometer, including the development of aneroid and digital versions. These innovations have made blood pressure measurement more accurate, convenient, and accessible to healthcare professionals and patients alike. Today, the sphygmomanometer remains an indispensable tool in medical practice, continuing its legacy of improving cardiovascular health assessment and management.

Types of Sphygmomanometers

There are several types of sphygmomanometers, each with its own unique features and advantages.

Mercury Sphygmomanometer

The mercury sphygmomanometer is considered the gold standard for blood pressure measurement. It consists of a mercury column, an inflatable cuff, and a manual inflation bulb. As the cuff deflates, the healthcare provider listens for Korotkoff sounds using a stethoscope. The mercury level in the column indicates the blood pressure reading. While highly accurate, mercury sphygmomanometers are being phased out due to environmental concerns.

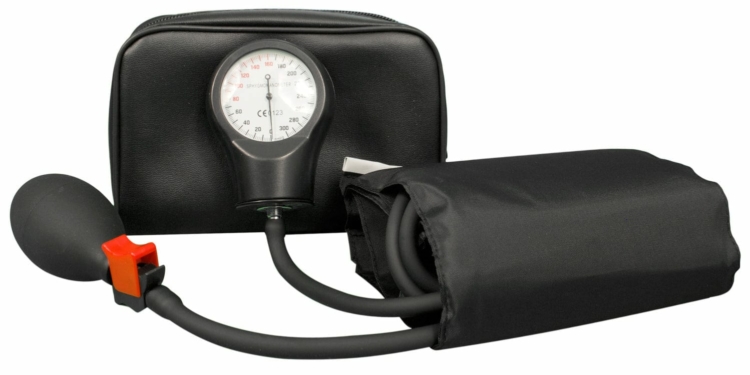

Aneroid Sphygmomanometer

Aneroid sphygmomanometers use a mechanical system instead of mercury. They feature a dial gauge, inflatable cuff, and manual inflation bulb. The dial’s needle moves as the cuff pressure changes, providing a reading. These devices are portable and mercury-free, making them popular in clinical settings. However, they require regular calibration to maintain accuracy.

Digital Sphygmomanometer

Digital sphygmomanometers use electronic sensors to measure blood pressure. They typically have an automatic inflation system and a digital display. These devices are easy to use and can store multiple readings. Some models can even transmit data to smartphones or computers. While convenient for home use, their accuracy can vary, and they may be affected by movement or irregular heartbeats.

Ambulatory Blood Pressure Monitor

This specialized type of sphygmomanometer is designed for 24-hour monitoring. It consists of a portable device worn on a belt and a cuff that inflates periodically. The monitor records blood pressure at preset intervals throughout the day and night, providing a comprehensive picture of blood pressure variations. This type is particularly useful for diagnosing white coat hypertension or assessing the effectiveness of blood pressure medications.

Wrist Sphygmomanometer

Wrist sphygmomanometers are compact devices that measure blood pressure at the wrist rather than the upper arm. They’re highly portable and convenient for travel. However, they tend to be less accurate than upper arm models due to the position of the wrist relative to the heart. Proper positioning is crucial for obtaining reliable readings with these devices.

Key Parts of a Sphygmomanometer

A sphygmomanometer is a crucial medical device used to measure blood pressure. Understanding its key components is essential for proper use and maintenance. Here are the seven main parts of a sphygmomanometer:

Inflatable Cuff

The inflatable cuff is a flexible band that wraps around the upper arm. It contains an internal bladder that inflates to restrict blood flow temporarily. Cuffs come in various sizes to accommodate different arm circumferences, ensuring accurate readings.

Pump Bulb

Connected to the cuff via rubber tubing, the pump bulb is a hand-operated device used to inflate the cuff. It typically features a one-way valve that allows air to enter the cuff but prevents it from escaping.

Pressure Gauge

The pressure gauge, or manometer, displays the pressure within the cuff in millimeters of mercury (mmHg). In a traditional sphygmomanometer, this is an analog dial, while digital models use an electronic display.

Release Valve

Located near the pump bulb, the release valve controls the deflation rate of the cuff. It allows for precise control of pressure reduction, which is crucial for accurate blood pressure measurement.

Stethoscope

Although not physically attached to the sphygmomanometer, a stethoscope is an essential component for manual blood pressure measurement. It allows the user to listen for Korotkoff sounds, which indicate systolic and diastolic pressure points.

Tubing

Rubber tubing connects the various components of the sphygmomanometer, allowing air to flow between the pump bulb, cuff, and pressure gauge. The quality and integrity of this tubing are vital for maintaining accurate pressure readings.

Calibration Screw

Located on the pressure gauge, the calibration screw allows for periodic adjustment to ensure the sphygmomanometer maintains accuracy over time. Regular calibration is essential for reliable blood pressure measurements.

Understanding these key parts of a sphygmomanometer is crucial for healthcare professionals and individuals who regularly monitor blood pressure. Proper knowledge of each component ensures accurate readings and effective device maintenance.

How to Use a Manual Sphygmomanometer

Using a manual sphygmomanometer requires practice and precision. Follow these steps to accurately measure blood pressure:

Prepare the patient

Ensure the patient is seated comfortably with their arm supported at heart level. They should relax for 5 minutes before the measurement. Remove any tight clothing from the upper arm.

Position the cuff

Wrap the cuff of the sphygmomanometer around the patient’s bare upper arm, about 1 inch above the elbow crease. The cuff should be snug but not tight.

Locate the brachial pulse

Find the brachial artery pulse point in the antecubital fossa (inner elbow). Place the stethoscope’s bell over this area.

Inflate the cuff

Close the valve on the rubber bulb and inflate the cuff by squeezing the bulb. Continue until the pressure reaches about 30 mmHg above the patient’s expected systolic pressure.

Listen and observe

Slowly release the valve to deflate the cuff at a rate of 2-3 mmHg per second. Listen carefully for the first clear tapping sound (Korotkoff sound). Note the pressure reading on the gauge when you hear this – it’s the systolic pressure.

Record the diastolic pressure

Continue to deflate the cuff. The point at which the sounds disappear completely is the diastolic pressure. Record both readings.

Repeat for accuracy

For the most accurate results, take two or three readings about a minute apart and average the results.

Remember, proper technique is crucial when using a sphygmomanometer. Regular practice and attention to detail will help ensure reliable blood pressure measurements.

How to Use a Digital Sphygmomanometer

Using a digital sphygmomanometer is a straightforward process that can be mastered with practice. Follow these steps to accurately measure blood pressure:

Prepare the patient

1. Ensure the patient is seated comfortably with their back supported and feet flat on the floor.
2. The arm should be bare and resting on a flat surface at heart level.
3. Ask the patient to relax and avoid talking during the measurement.

Position the cuff

1. Wrap the cuff snugly around the upper arm, about 1 inch above the elbow.
2. The cuff’s bottom edge should align with the brachial artery.
3. Ensure the cuff is not too tight or loose; you should be able to slip two fingers underneath.

Take the measurement

1. Press the power button on the digital sphygmomanometer to turn it on.
2. Allow the device to inflate the cuff automatically.
3. As the cuff deflates, the device will display the systolic and diastolic pressure readings.
4. Wait for the cuff to fully deflate before removing it.

Record and interpret results

1. Note down the systolic and diastolic pressure readings.
2. Record the pulse rate, which is usually displayed alongside the blood pressure.
3. Take at least two readings, one minute apart, for accuracy.
4. Compare the results to standard blood pressure guidelines.

Remember, proper technique is crucial for obtaining accurate readings with a digital sphygmomanometer. Regular calibration and maintenance of the device are also essential for reliable measurements. If you’re unsure about the results or notice consistently high readings, consult a healthcare professional for further evaluation and guidance.

Proper Technique for Accurate Blood Pressure Readings

Accurate blood pressure measurements are crucial for proper diagnosis and treatment. Follow these steps to ensure precise readings when using a sphygmomanometer:

Prepare the patient

Begin by having the patient sit comfortably with their back supported and feet flat on the floor. Ensure they’ve avoided caffeine, exercise, and smoking for at least 30 minutes prior. The arm should be bare and supported at heart level.

Position the cuff correctly

Wrap the cuff snugly around the upper arm, about 1 inch above the elbow crease. The cuff’s bottom edge should align with the brachial artery.

Inflate and deflate the cuff

Locate the brachial pulse and inflate the cuff 20-30 mmHg above the point where the pulse disappears. Slowly deflate the cuff at a rate of 2-3 mmHg per second.

Listen for Korotkoff sounds

Using the stethoscope, listen for the first clear tapping sound (systolic pressure) and the point where the sound disappears (diastolic pressure). Record both numbers.

Take multiple readings

For accuracy, take at least two readings, one minute apart. If they differ by more than 5 mmHg, take additional readings and average the results.

Consider special circumstances

Certain conditions may require modifications to the technique. For example, in pregnant women or patients with arrhythmias, additional precautions may be necessary.

By following these steps, healthcare professionals can ensure accurate blood pressure measurements using a sphygmomanometer, leading to better patient care and more precise diagnoses.

Factors That Can Affect Sphygmomanometer Readings

Accurate blood pressure measurement is crucial for diagnosis and treatment. However, several factors can influence sphygmomanometer readings, leading to incorrect or inconsistent results.

Physical Activity and Posture

Your recent physical activity and body position can significantly impact sphygmomanometer readings. Engaging in exercise or even walking briskly to your appointment can temporarily elevate blood pressure. For accurate results, sit quietly for at least five minutes before measurement. Additionally, ensure your back is supported, feet are flat on the floor, and your arm is at heart level.

Caffeine and Nicotine Consumption

Consuming caffeine or using nicotine products shortly before a blood pressure check can lead to temporarily elevated readings. These substances stimulate the nervous system, causing a short-term spike in blood pressure. It’s advisable to avoid caffeine and nicotine for at least 30 minutes prior to using a sphygmomanometer.

Stress and Anxiety

Mental state plays a crucial role in blood pressure readings. Stress, anxiety, or even the nervousness associated with medical visits (known as “white coat syndrome”) can cause a temporary increase in blood pressure. Practice relaxation techniques or deep breathing exercises before your measurement to minimize this effect.

Recent Meal Consumption

Eating a large meal shortly before a blood pressure check can affect your sphygmomanometer readings. Digestion increases blood flow to the digestive system, potentially leading to a slight elevation in blood pressure. For the most accurate results, wait at least two hours after a meal before taking a measurement.

Bladder Fullness

A full bladder can cause a temporary increase in blood pressure. This effect is due to the pressure exerted on surrounding blood vessels. Empty your bladder before using a sphygmomanometer to ensure more accurate readings.

Temperature and Environment

Extreme temperatures, either hot or cold, can affect your blood pressure and subsequently, sphygmomanometer readings. Cold temperatures can cause blood vessels to constrict, potentially leading to higher readings. Ensure measurements are taken in a comfortable, temperate environment for consistency.

Cuff Size and Placement

Using an incorrectly sized cuff or improper placement can significantly impact the accuracy of sphygmomanometer readings. A cuff that’s too small may result in falsely high readings, while one that’s too large might yield artificially low readings. Ensure the cuff is appropriately sized and placed directly on the skin, not over clothing, for the most reliable results.

Frequently Asked Question

Here are some frequently asked questions and answers about a sphygmomanometer:

How does a sphygmomanometer work?

The sphygmomanometer works by temporarily stopping blood flow in the arm. As the cuff deflates, the device measures the pressure at which blood starts flowing again (systolic pressure) and when it flows freely (diastolic pressure). These measurements are typically expressed as two numbers, such as 120/80 mmHg.

How accurate are sphygmomanometers?

When used correctly, sphygmomanometers are highly accurate. However, factors like cuff size, proper positioning, and user technique can affect readings. Regular calibration is essential for maintaining accuracy, especially for aneroid models.

Can I use a sphygmomanometer at home?

Yes, many people use sphygmomanometers for home blood pressure monitoring. Digital models are often preferred for their ease of use. However, it’s important to receive proper training from a healthcare professional to ensure accurate readings.

Conclusion

In conclusion, a sphygmomanometer is a vital tool for measuring blood pressure and monitoring cardiovascular health. By understanding the different types of sphygmomanometers, factors that can affect readings, and proper usage techniques, individuals can ensure accurate and reliable blood pressure measurements. Whether in a clinical setting or for personal use, a sphygmomanometer is an essential device for maintaining good health and wellbeing.
